This post has been written by Vittorio, a friend of mine very skilled with hand tools. I only translate from Italian (hope not too badly) his great job. Thank you Vittorio and welcome to the blog!
For some time I thought to build a metal plane and surfing the net I found a lot of ideas and this very good project:
http://user.xmission.com/~jry/ww/tools/a13/a13.html
and my adventure started!
I thank you Jim Yehle from Salt Lake City, the author of the project from which my plane was inspired.
I used Fe 430 steel. I think it is strong enough for good plane sturdiness and at same time permits to use hand tools for working it easily; I used 6 mm thick plate for the sole and a 5mm one for sides.
I started by coupling sides together, marking joints and boring for reducing the steel amount to be discarded; with patience I shaped the dovetails. These have 60° angles, as well as files have.
For some time I thought to build a metal plane and surfing the net I found a lot of ideas and this very good project:
http://user.xmission.com/~jry/ww/tools/a13/a13.html
and my adventure started!
I thank you Jim Yehle from Salt Lake City, the author of the project from which my plane was inspired.
I used Fe 430 steel. I think it is strong enough for good plane sturdiness and at same time permits to use hand tools for working it easily; I used 6 mm thick plate for the sole and a 5mm one for sides.
I started by coupling sides together, marking joints and boring for reducing the steel amount to be discarded; with patience I shaped the dovetails. These have 60° angles, as well as files have.
I cut the sole, marked out tails and sawn them as precisely as possible; this job was far more difficult.




Side shaping, first lapping with 100 grit abrasive paper and 6mm rivet plugging in for blade holder fastening.





I used 8mm steel rods (bored in a machine shop) as spacers for handle fixing. Rods were threaded inside and inserted into the wood; as said above if the inner side is not square to the sole, the spacer ability of firmly holding the wood in place will be decreased.

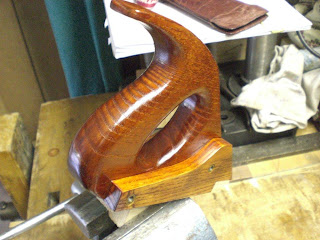

The wood has been finished with 8 coats of shellac, fixed to metal body with screws firmly screwed and then clinched.
Unfortunately ordinary screws have the conical section too low, so the countersink has not completely filled. However the final lapping helps to attenuate the gap.
Unfortunately ordinary screws have the conical section too low, so the countersink has not completely filled. However the final lapping helps to attenuate the gap.


Finally the road test. I tried the plane with fir, lime and beech. It's a pleasure use it. This is sufficient for satisfying me enough of the job, done only using hand tools.

The mouth opening is 1 mm. The plane weights 2260 gr.

Final notes.
While I am waiting for a knurled screw for lever cap, I have done a wooden cap.
Although the plane lacks of adjusting mechanism, its set up is easy.
The handle tail could appear too accentuate, but the grip results very ergonomic.Although the plane lacks of adjusting mechanism, its set up is easy.
After all I am very happy beaucause has been a great experience with a good result.
Ciao
Ciao
Vittorio
Amazing job. You plane is beautiful. You should be very proud.
ReplyDeleteWonderful work Vittorio. There is many hours of work in what you made. You should be proud of what you have achieved.
ReplyDeleteStewie.
Thanks friends, you are very kind
ReplyDeleteciao Vittorio
Just found your site. That plane turned out beautifully. If I may ask a question. How did you install the rivets for the blade holder? Did they go all the way through and peened on the bottom? Thank you for your time.
ReplyDeleteBill
Hi Bill, the rivets go all the way through; the holes on the sole and holder are countersunk in order to create room for the peened material. The bottoms of rivet heads are also rounded, so the hammering job is reduced.
DeleteI have added a pic of the sole showing the countersunk holes.
Hope this helps
Regards
Vittorio
